Package Substation

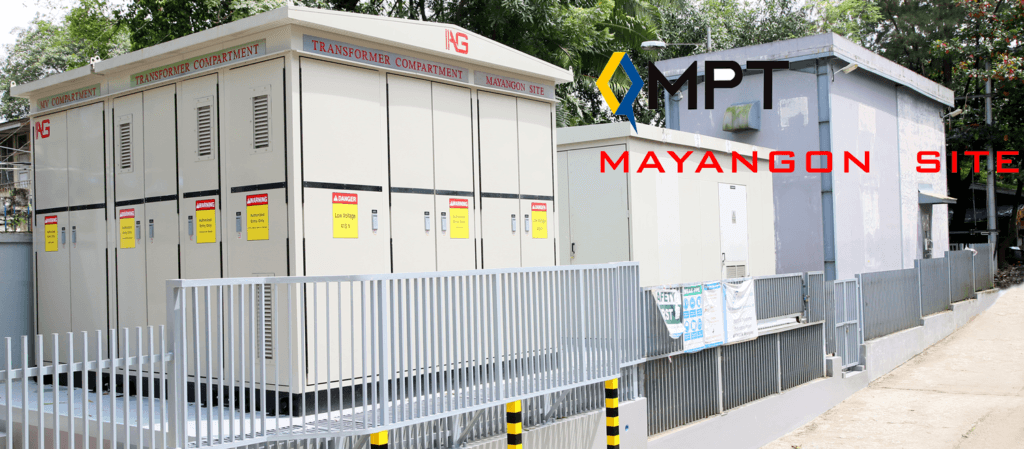

Compartmented MV/LV package substation integrating HV switchgear, transformer and LV distribution.

Request quotation Specification matching available

View details

Product overview

Built around the project specification

A factory-assembled, compartmented unit integrating HV switchgear, a distribution transformer and LV distribution in a single naturally ventilated enclosure for indoor or outdoor use. HV/LV compartments are rated IP54 and the transformer compartment IP23D, with a 12 kV HV section feeding 0.4 kV LV. It accommodates 50–2500 kVA transformers with 70–3600 A LV current, built to IEC standards.

Key features

Compartmented HV / transformer / LV
IP54 (HV/LV), IP23D (transformer)
12 kV HV / 0.4 kV LV, 50–2500 kVA
Indoor / outdoor installation

Applications

Urban & commercial distribution
Industrial & manufacturing facilities
Residential developments & infrastructure
Utility & renewable grid connection

Specifications

Configuration: Compartmented HV / transformer / LV
Ratings: IP54 (HV/LV), IP23D (transformer)
Construction: 12 kV HV / 0.4 kV LV, 50–2500 kVA
Technical detail: Indoor / outdoor installation

Technical documents

Documentation for procurement and review

Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.

Open document library

Send the rating, quantity, and delivery requirement for technical matching.
