PTE / EPCC / 02

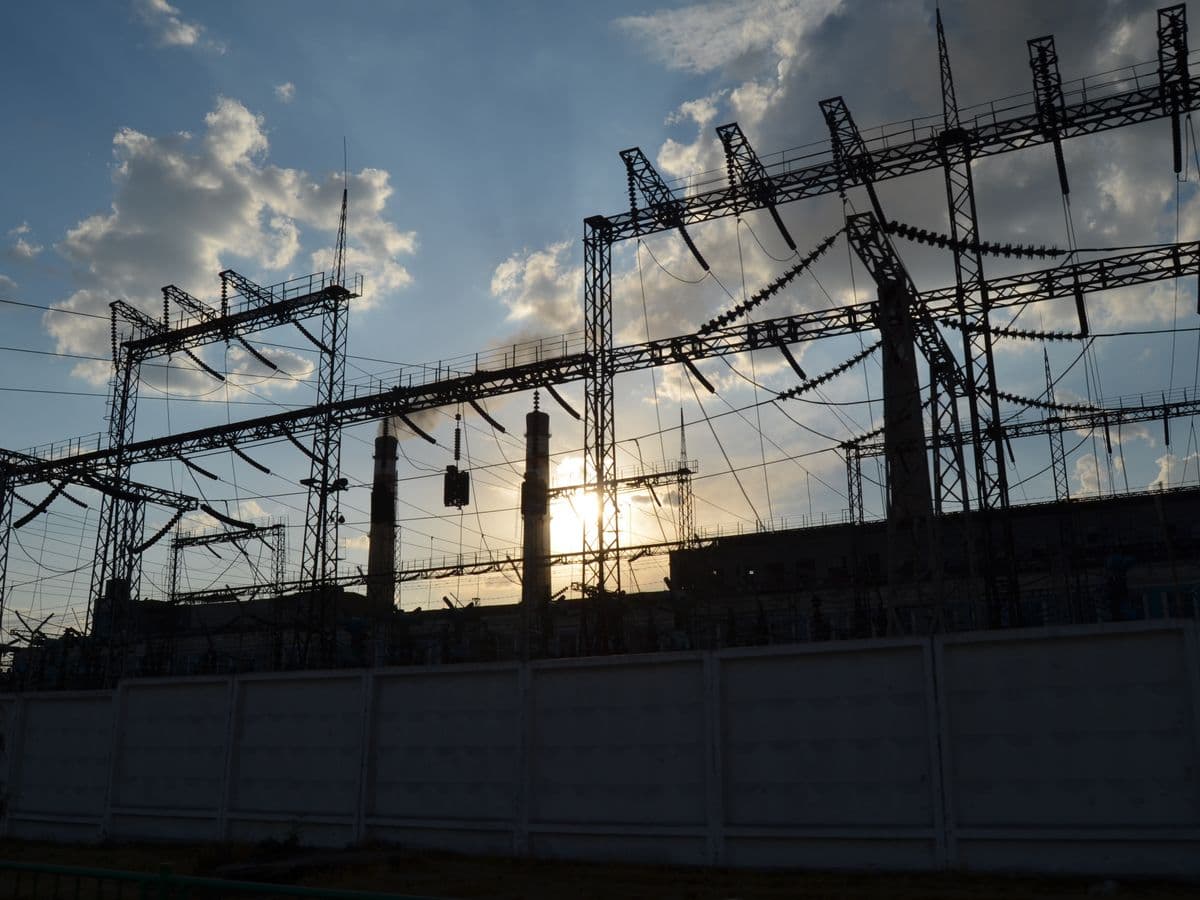

Primary Distribution Substation System
Primary distribution substations that step 33 kV supply down to 11 kV and feed the medium-voltage networks serving towns, industrial zones, and large developments.
Defined project scope
One coordinated system, not disconnected packages
Power Tagun coordinates technical decisions, equipment interfaces, site delivery, testing, and handover around the approved system requirement.
Load assessment and single-line design
Power transformer and 33 kV / 11 kV switchgear specification
Feeder protection, control, and metering coordination
Installation, testing, and energisation support
Typical equipment
Integrated around the single-line design
- 0133 kV incoming switchgear
- 0233/11 kV power transformers
- 0311 kV outgoing feeder switchgear
- 04Protection, control, and metering panels
Project outcomes
Coordinated 33 kV and 11 kV interfaces
Selective feeder protection
Dependable medium-voltage distribution
Delivery pathway
Controlled from engineering intent to energisation
- 01
Engineering
Define the system, studies, interfaces, and approved design basis.
- 02
Procurement
Match equipment, documentation, and delivery to the approved specification.
- 03
Installation
Coordinate site interfaces, installation quality, and construction readiness.
- 04
Testing
Verify protection, control, equipment, and system performance before energisation.
- 05
Commissioning
Control handover, energisation, and project records.
