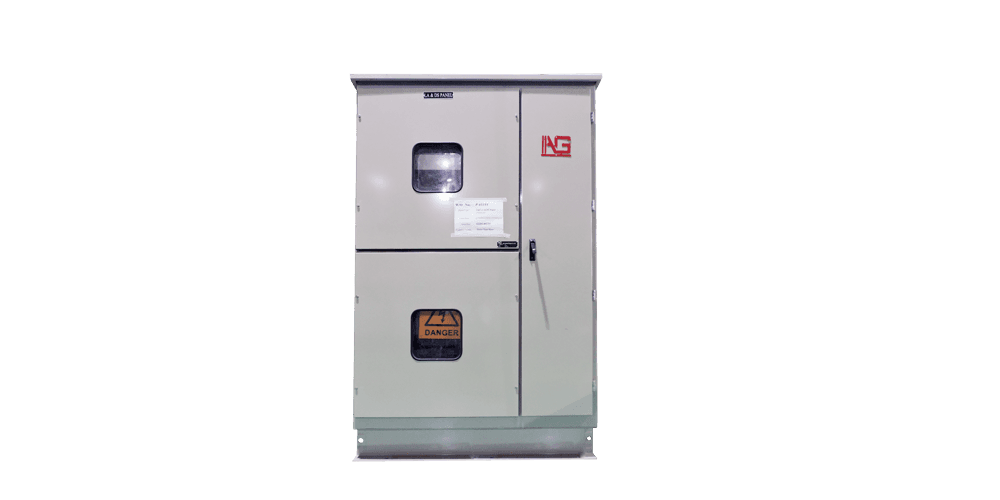

MV Disconnect Switch Panel
Manufactured by AGT / AGE
Manufactured by AGT / AGE of the Asia General Holding group. Power Tagun delivers the EPCC turn-key service around this equipment.
MV disconnect switch panel with integrated fuse cutout, 12 kV / 40.5 kV at 100 A.
View detailsProduct overview
Built around the project specification
A medium-voltage disconnect switch assembly combining a load-isolating disconnect switch with an integrated ceramic fuse cutout for circuit protection. Offered in 12 kV and 40.5 kV variants at 100 A, 50/60 Hz, with low main-circuit resistance and high short-circuit interrupting capability for a long mechanical service life.
Key features
- 12 kV & 40.5 kV at 100 A, 50/60 Hz
- Integrated ceramic fuse cutout (~10 kA)
- Low main-circuit resistance (150 µΩ)
- High mechanical life
Applications
- MV feeder isolation & switching
- Transformer overcurrent protection
- Sectionalising & branch protection
- Utility & industrial MV installations
Specifications
- Configuration
- 12 kV & 40.5 kV at 100 A, 50/60 Hz
- Ratings
- Integrated ceramic fuse cutout (~10 kA)
- Construction
- Low main-circuit resistance (150 µΩ)
- Technical detail
- High mechanical life
Technical documents
Documentation for procurement and review
Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.
