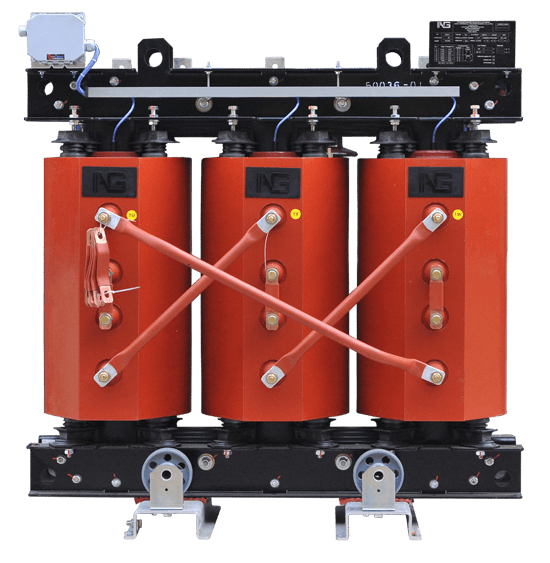

Cast-Resin Dry-Type Transformer

Cast-resin dry-type transformer to IEC 60076-11, 100–4000 kVA, up to 36 kV class.

Request quotation Specification matching available

View details

Product overview

Built around the project specification

A cast-resin dry-type transformer built to IEC 60076-11 in 12, 17.5, 24 and 36 kV insulation classes, from 100 to 4000 kVA. Windings are vacuum-cast in epoxy resin, giving a flame-retardant, moisture- and dust-resistant unit for indoor installation without containment or fire-suppression. Each rating is offered in Standard, Low and Very Low loss variants.

Key features

Compliant with IEC 60076-11
12 / 17.5 / 24 / 36 kV classes
100 kVA – 4000 kVA
Standard / Low / Very Low loss options

Applications

Indoor commercial & high-rise buildings
Industrial & process facilities
Hospitals, data centres, fire-sensitive sites
Renewable & utility substations

Specifications

Configuration: Compliant with IEC 60076-11
Ratings: 12 / 17.5 / 24 / 36 kV classes
Construction: 100 kVA – 4000 kVA
Technical detail: Standard / Low / Very Low loss options

Technical documents

Documentation for procurement and review

Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.

Open document library

Send the rating, quantity, and delivery requirement for technical matching.
