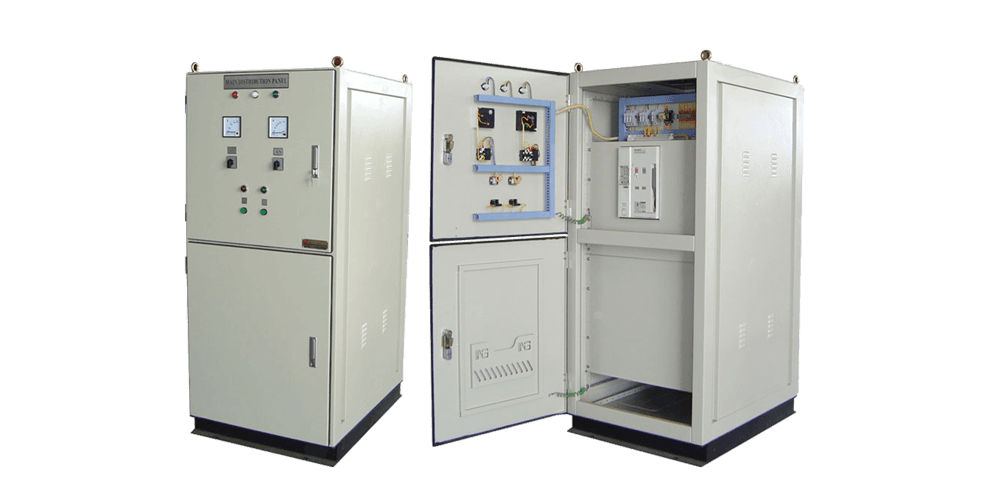

ACB Panel

Low-voltage air-circuit-breaker panel for 400 V utility supply and main switchboard duty.

Request quotation Specification matching available

View details

Product overview

Built around the project specification

A floor-standing switchgear assembly built around air circuit breakers for 400 V utility supply and main switchboard applications, rated up to 6000 A in 3- and 4-pole configurations. It integrates CTs for metering and protection with overcurrent and earth-fault options, in an EGI steel enclosure with tin-coated copper busbars.

Key features

800–6000 A, 690 V service voltage
3- & 4-pole, 50/60 Hz
EGI steel enclosure, IP 3X
Tin-coated copper busbars, 3-CT wiring

Applications

400 V incomer for main switchboards
Main power distribution & feeders
Metering & protection instrumentation
LV overcurrent & earth-fault protection

Specifications

Configuration: 800–6000 A, 690 V service voltage
Ratings: 3- & 4-pole, 50/60 Hz
Construction: EGI steel enclosure, IP 3X
Technical detail: Tin-coated copper busbars, 3-CT wiring

Technical documents

Documentation for procurement and review

Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.

Open document library

Send the rating, quantity, and delivery requirement for technical matching.
