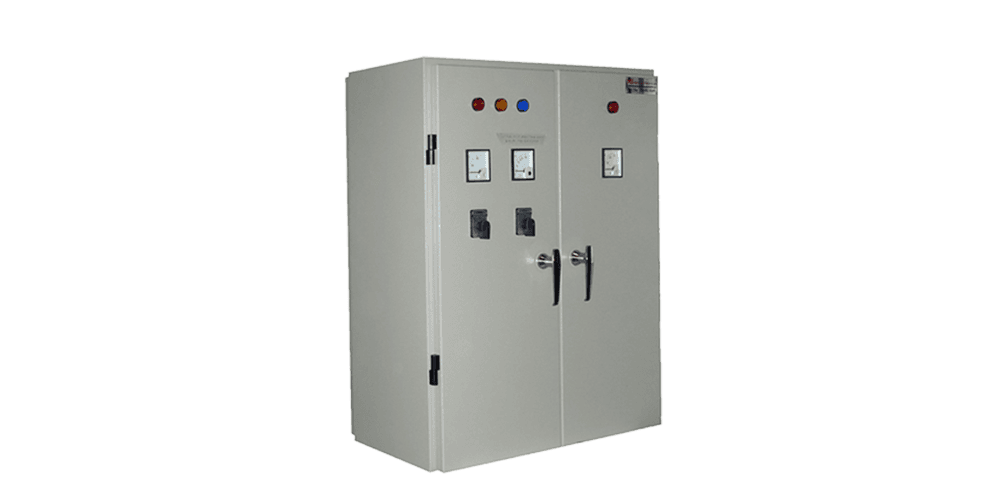

AC/DC Distribution Panel

Floor- or wall-mount AC/DC panel for substation lighting and 110 V DC supply.

Request quotation Specification matching available

View details

Product overview

Built around the project specification

A dual-door enclosed distribution board handling both AC distribution and DC supply from a battery bank in a substation. It distributes AC power for substation lighting and outlets and routes 110 V DC from the battery bank to switchgear panels. Built from EGI sheet with tin-coated copper busbars and epoxy finish, with top or bottom cable entry.

Key features

Two-door enclosure, 900 × 800 × 300 mm
IP 3X external, IP 2X partitions
EGI sheet, tin-coated copper busbar
Floor-standing or wall-mount

Applications

Substation lighting & power outlets
110 V DC distribution to switchgear
Auxiliary supply in substation rooms
Lighting & feeder management

Specifications

Configuration: Two-door enclosure, 900 × 800 × 300 mm
Ratings: IP 3X external, IP 2X partitions
Construction: EGI sheet, tin-coated copper busbar
Technical detail: Floor-standing or wall-mount

Technical documents

Documentation for procurement and review

Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.

Open document library

Send the rating, quantity, and delivery requirement for technical matching.
