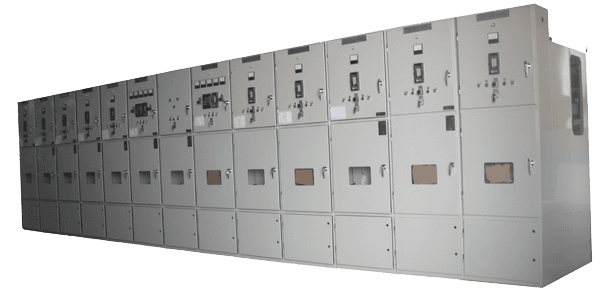

12 kV VCB Switchgear Panel
Manufactured by AGT / AGE
Manufactured by AGT / AGE of the Asia General Holding group. Power Tagun delivers the EPCC turn-key service around this equipment.
12 kV / 630 A withdrawable indoor vacuum-circuit-breaker switchgear with metering & protection.
View detailsProduct overview
Built around the project specification
An indoor medium-voltage switchgear panel built around withdrawable vacuum circuit breaker (VCB) technology, rated 12 kV / 630 A with 25 kA rms breaking capacity. Configured for multiple outgoing feeders, it integrates overcurrent and earth-fault protection relays, digital metering and energy measurement with RS-485 communication.
Key features
- 12 kV / 630 A, 25 kA rms breaking
- Withdrawable VCB with protection relays
- 110 V DC control, 230 VAC spring charging
- Digital metering with RS-485 port
Applications
- Indoor MV distribution & feeder switching
- Industrial MV switchrooms
- Commercial & infrastructure substations
- 12 kV outgoing feeder protection
Specifications
- Configuration
- 12 kV / 630 A, 25 kA rms breaking
- Ratings
- Withdrawable VCB with protection relays
- Construction
- 110 V DC control, 230 VAC spring charging
- Technical detail
- Digital metering with RS-485 port
Technical documents
Documentation for procurement and review
Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.
