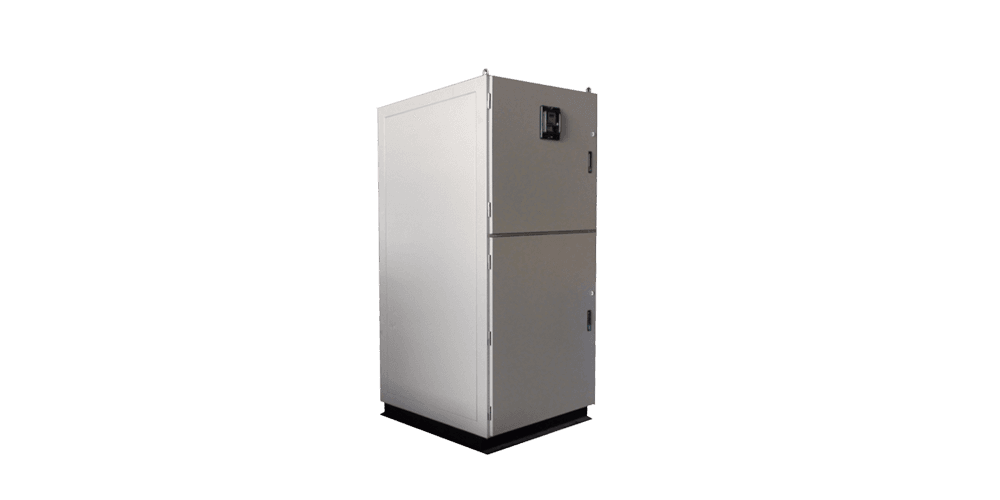

12 kV Metering Panel
Manufactured by AGT / AGE
Manufactured by AGT / AGE of the Asia General Holding group. Power Tagun delivers the EPCC turn-key service around this equipment.
Indoor 12 kV floor-standing metering panel for accurate MV energy and power measurement.
View detailsProduct overview
Built around the project specification
An indoor, floor-standing medium-voltage cubicle housing voltage and current transformers with metering instruments for accurate measurement of energy, power and other parameters on 12 kV networks. Built from 2 mm EGI steel with tin-coated copper busbars and Jotun epoxy finish, with internal partitions and bottom cable entry.
Key features
- Floor-standing, 2200 × 900 mm, 2 mm EGI
- IP 3X enclosure, IP 2X partitions
- Tin-coated copper busbars
- Jotun epoxy finish (RAL 7032/7305)
Applications
- 12 kV substation revenue metering
- Utility & industrial incomer metering
- Integration in MV line-ups
- Indoor instrument-transformer metering
Specifications
- Configuration
- Floor-standing, 2200 × 900 mm, 2 mm EGI
- Ratings
- IP 3X enclosure, IP 2X partitions
- Construction
- Tin-coated copper busbars
- Technical detail
- Jotun epoxy finish (RAL 7032/7305)
Technical documents
Documentation for procurement and review
Available catalogues, datasheets, manuals, and group certificates are kept in the document library. Final ratings are confirmed against the project specification.
